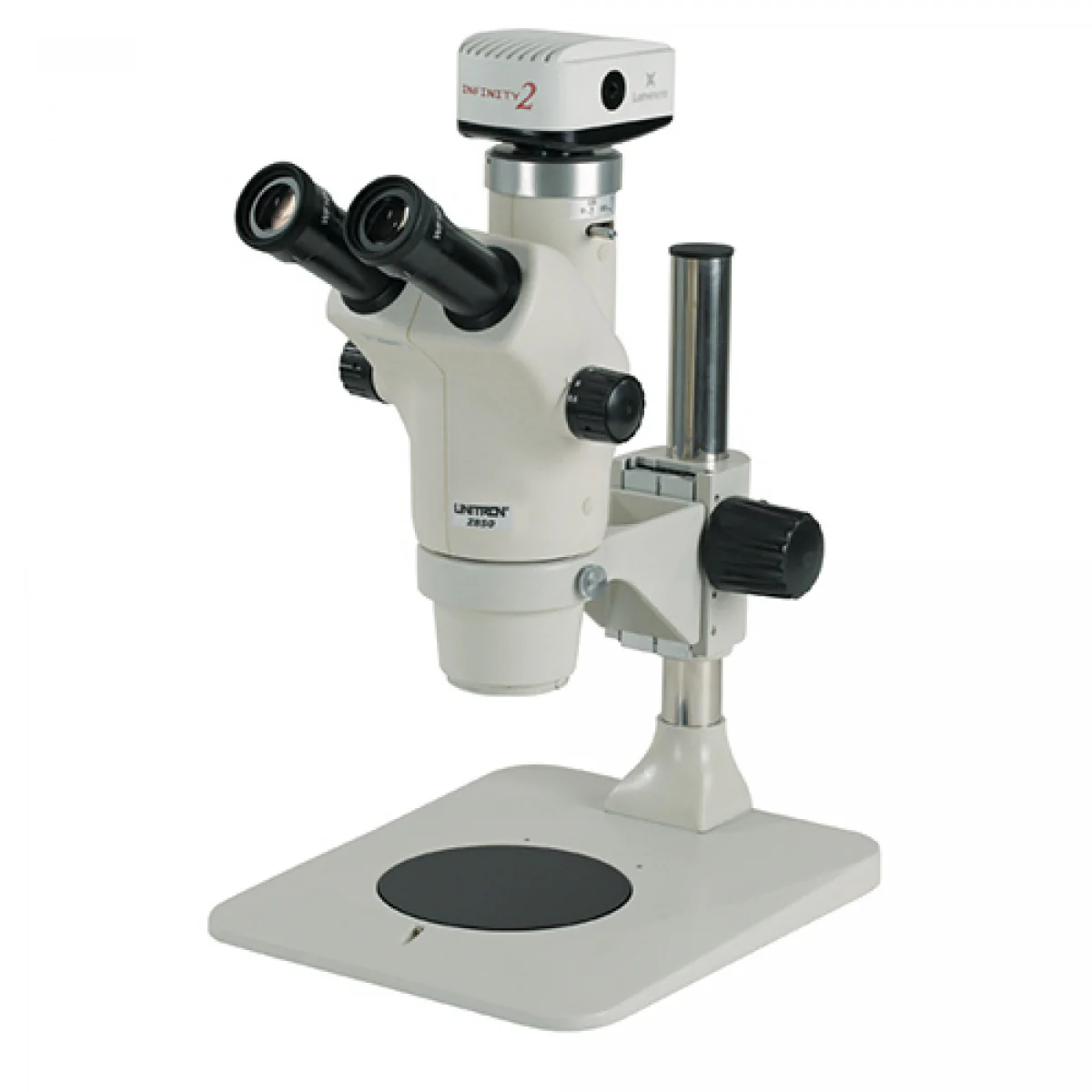

Unitron Z650HR Trinocular High Resolution Zoom Stereo Microscope on Pole Stand

Trinocular High Resolution Zoom Stereo Microscope on Pole Stand

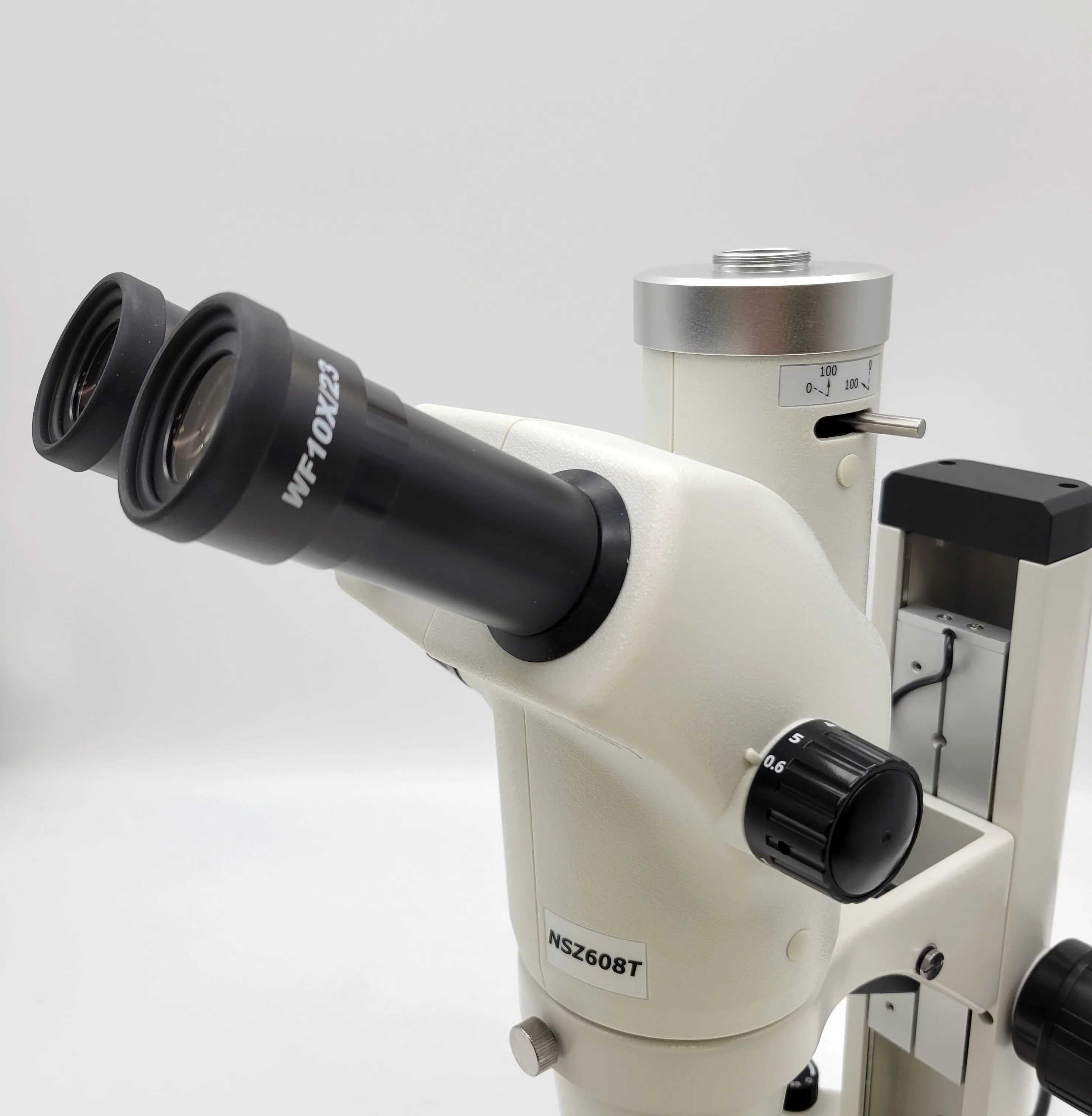

Trinocular viewing head, 0.6x to 5.0x zoom range, inclined at 30°,115 mm working distance,
interpupillary distance adj, 52-75mm, glass lens shield
WF 10x eyepieces with built-in diopter adjustment (paired) 23mm field of view, 0/100 light split,
with 0.55x built-in c-mount lens, or remove to become a 1x c-mount
Pole stand with rack and pinion focusing arm
125mm black & white stage plate
Dust cover and instruction manual

Specifications

• Trinocular viewing head inclined at 30°
• 0/100 light split
• Built-in 0.55x c-mount camera adapter
• Widefield 10x/23mm focusing eyepieces with roll down eyeguards
• 0.6x – 5.0x zoom magnification range
• 8:1 zoom ratio

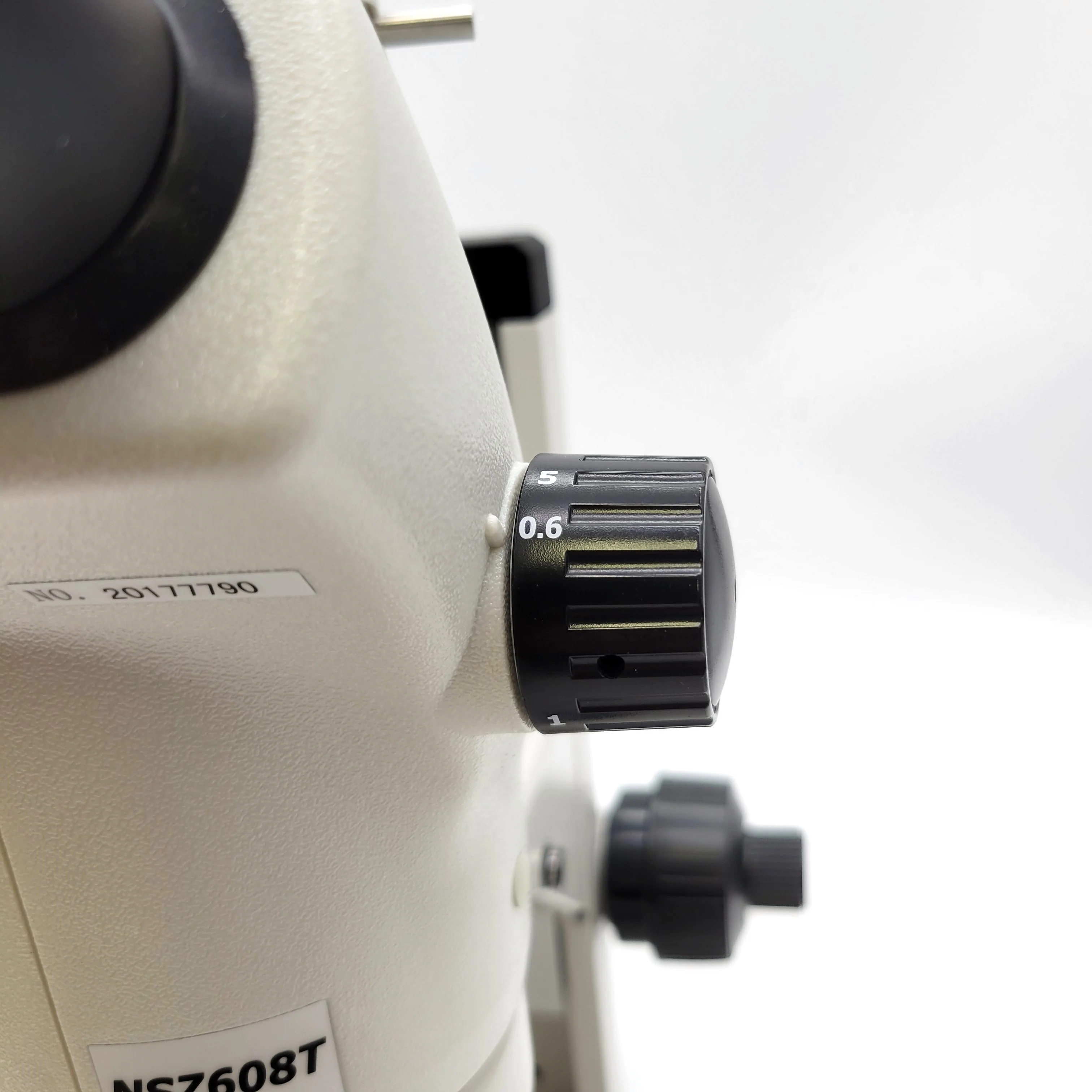

• Magnification range 6x-50x (with 10x eyepieces), with click stops at 1x, 2x, 3x, 4x and 5x
• Interpupillary Distance Adjustment 55mm – 75mm
• 115mm working distance
• Pole Stand with 12” vertical post; adjustable rack and pinion focus mount provides users with maximum flexibility for look at large size samples
• Black and white stage plate
• Airtight and anti-mold design
• Shipping weight 15lbs.
