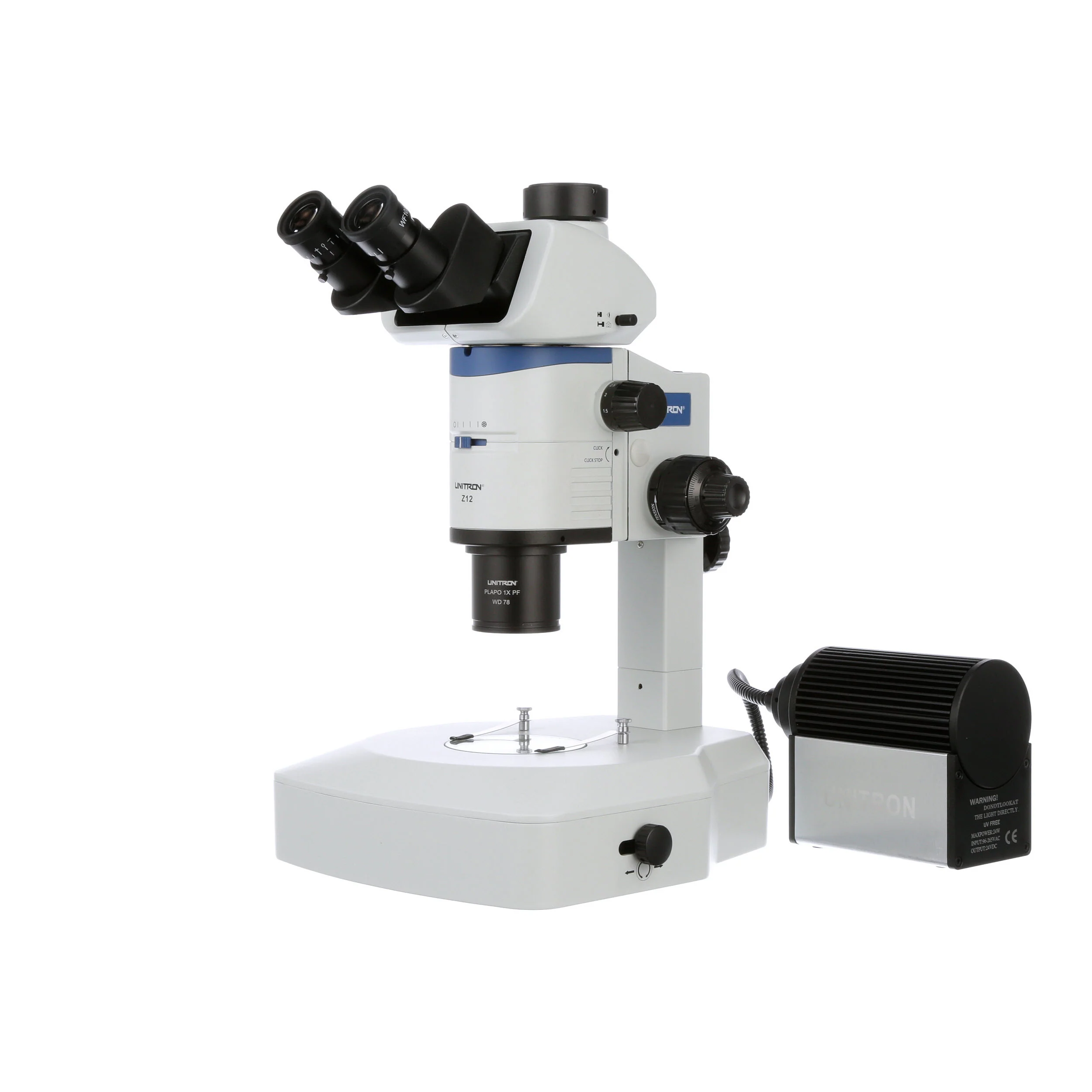

Unitron Z12 Microscope on Diascopic Stand With Tiltable Mirror LED Illumination

The new Z12 zoom stereo microscope from UNITRON features a Common Main Objective design, a 12.5:1 zoom ratio and a massive 6.3X to 320X magnification range.

The Z12 includes many features typically found in higher priced microscopes. Three new stands suit the most demanding applications: plain focusing stand, transmitted light base with sliding/tilting mirror, and a slim profile LED transmitted light base. The color-balanced LED light sources give bright illumination to the specimen, and are highly cost effective (low energy consumption and long lifespans). A 5°-45° tilting trinocular observation head offers ergonomic viewing comfort that is customizable to the observer. Its apochromatic objectives deliver crisp color reproduction and high resolution of fine structures, and the trinocular port is ready to accept a digital microscopy camera for imaging. Click-stop zoom positions allow the observer to quickly return to a specific magnification setting, thus saving time and increasing reproducibility.

The Z12 addresses a wide variety of applications from assembly and quality control in the industrial markets, to stem cell and embryo selection in the life sciences. The new UNITRON Z12 delivers both performance and high-end features at a value-conscious price point.

If you would like to add a camera to your system we have lots of options here

Specifications

• CAT# 11201-T: Trinocular viewing head, fixed incline to 30° 50/50 viewing split eyepieces/camera port; use camera port and both eyepieces simultaneously

•  CAT# 11201-TE: Ergonomic tilting trinocular viewing head, 5° – 45° adjustable, 0:100 or 100:0 viewing split to eyepieces/camera port

• Plan 10x/23mm FOV focusing eyepieces with built-in diopter adjustment and roll-down eyeguards (eyepiece accepts a 26.5mm reticle)

•  0.63x - 8x zoom magnification range

• 12.5:1 zoom ratio

•  Magnification range 6.3x – 80x (with 10x eyepieces)

• Variable Zoom Magnification System with Parallel optical axis with iris (Galilean optical system; Common Main Objective)

•  52mm – 75mm interpupillary distance adjustment

• 1.0x semi-Apochromatically corrected common main objective (N.A. 0.1, W.D. 78mm)

•  Click-stops at 0.63, 1.0, 1.5, 2.5, 3, 4, 5, 6 and 8x positions

• Working distance 78mm with included 1.0x semi-Apo objective

• Diascopic base with glass plate and 360° tiltable mirror with adjustable location; Coaxial focusing arm
• 24w LED fiber optic illuminator with flexible gooseneck, universal power supply
