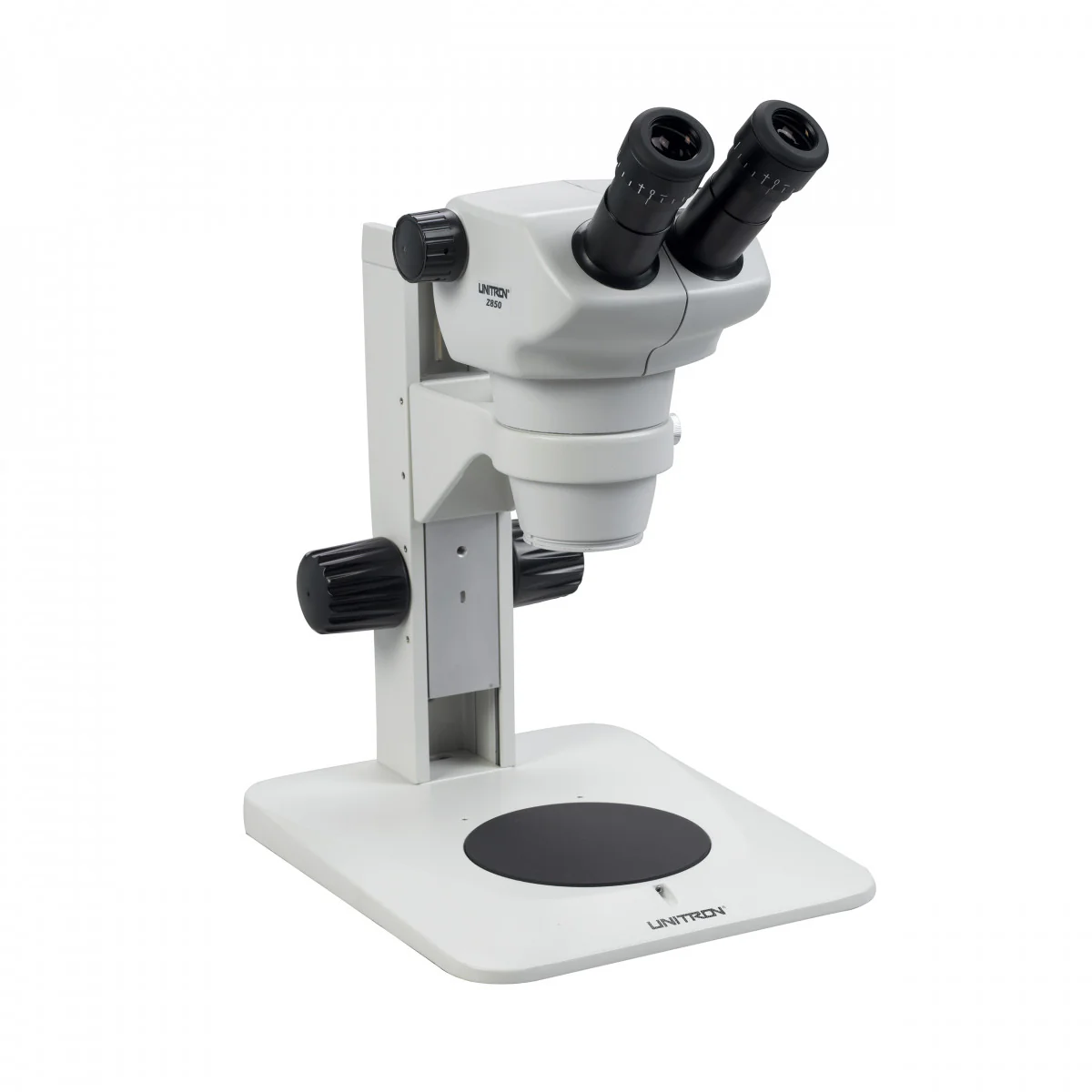

Unitron Z645 Gemological Zoom Stereo Microscope on LED Stand
Equipped with high-quality optics, the Unitron Z645 delivers sharp, distortion-free images across the entire field of view, enabling researchers, technicians, and educators to conduct accurate examinations and investigations. Its ergonomic design ensures comfortable usage over extended periods, minimizing fatigue during prolonged observation sessions. The microscope has a 0.67x to 4.5x zoom range and uses a standard 10X eyepiece. It is an excellent stereo and inspection microscope
If you would like to add a camera to your system we have lots of options here
Specifications
- Available with Binocular viewing head with 45° viewing angle, or Trinocular viewing head with 45° viewing angle
- 1.0x glass lens shield
- Trinocular with fixed 50:50 light split, eyepieces:camera port
- 1.0x glass lens shield
- Widefield 10x/22mm focusing eyepieces
- 0.67x – 4.5x zoom magnification range
- 6.7:1 Zoom ratio
- Magnification range 6.7x-45x (with 10x eyepieces), with click stops at 0.67, 0.8, 1, 1.2, 1.5, 2, 2.5, 3, 3.5, 4 and 4.5; with adjustable zoom range limits
- Interpupillary Distance Adjustment 52mm – 76mm
- Field of view 32.8mm - 4.8mm (1x or no auxiliary lens)
- 110mm working distance (1x or no auxiliary lens)
- Darkfield condenser with adjustable iris diaphragm
- Wire stone holder / gem clamp
- LED stand with variable LED incident (12V/2W) and transmitted (12V/4W) illumination
- Focusing stand with stage clips
- 100mm frosted and clear glass plates, black & white stage plates
- Base dimensions (LWH): 240mm x 292mm x 318mm
- Universal power supply 100V to 240V, voltage sensitive, integrated
- Airtight and anti-mold design
- Shipping weight 18lbs.
Unitron Z645 Camera Adapters (for trinocular model)
Unitron Z645 Aux Lenses
Unitron Z645 Eyepiece Options
Camera Options
