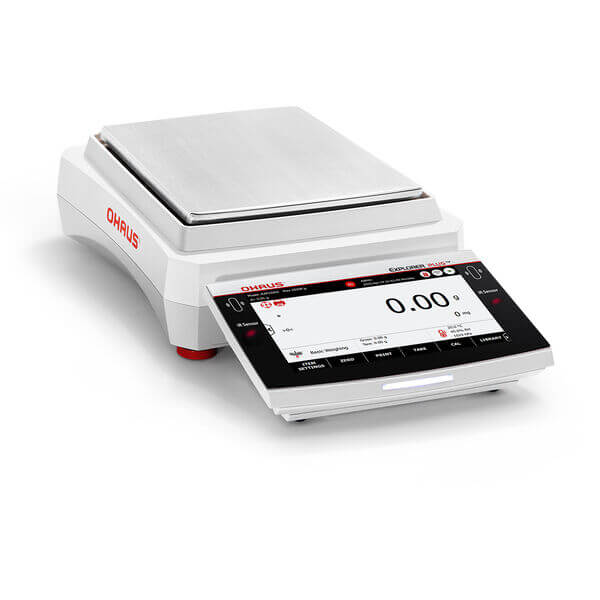

Ohaus Precision Balance EXP6202 | 31059197
Ohaus Precision Balance EXP6202 | 31059197
Applications
Basic Weighing, Parts Counting, Check Counting, Percent Weighing, Check Weighing, Dynamic Weighing, Totalization, Formulation, Differential, Density Determination, Peak Hold, Pipette Adjustment, SQC, Fill Weight Variation, Flow Rate Control
Display
7-inch TFT 16.7M Color Touch Screen with Glass Overlay
Operation
AC Adapter Input: 100-240 VAC 0.5A 50-60 Hz; AC Adapter Output: 12 VDC 1.5A
Communication
USB Host (Type A) x 2, USB Device (Type B) x 1, USB Device (Type C) x 1, Ethernet (RJ45) x 1, RS232 x 1; Optional Wi-Fi, Bluetooth Dongle
Construction
Modular Design, Metal Base and Housing, SST 316 weighing pan, Motorized Leveling, 2 touchless sensors and Status lights. Automatic doors with anti-pinch safety protection, Anti-static glass draftshield, Built-in ionizer and Sample spotlight (1 mg models).
Design Features
Time Synchronization NTP, Support for HID (Human Interface Device) connection to a computer without the need for drivers, 4 level user management and an internal system log capacity of 100,000 entries, 3000 application sample libraries
Specifications
| Maximum Capacity | 6,200 g |
| Readability | 0.01 g |
| Pan Size | 7.9 in x 7 in (201 mm x 178 mm) |
| Internal Calibration | AutoCal™ - Automatic |
| Draftshield | — |
| Dimensions | 16.1 in x 3.8 in x 9 in (408 mm x 97 mm x 229 mm) (LxHxW) |
| Battery Life | Not Applicable |
| Legal for Trade | NTEP Certified |
| Auxiliary Display Model | Available as an Accessory |
| Auto Door | Not Applicable |
| Tare Range | To capacity by subtraction |
| Working Environment | 50°F – 86°F, 80%RH, non-condensing (10°C – 30°C, 80%RH, non-condensing) |
| Net Weight | 12.1 lb (5.5 kg) |
| In-Use Cover | Included |
| Communication | USB device; USB host x 2; RS232; Ethernet TCP/IP; WiFi/Bluetooth (available as an accessory) |
| Power | AC Adapter (Included) |
| Units of Measurement | Ounce Troy; Pennyweight; Gram; Grain; Kilogram; Pound; Carat; Ounce |
| Minimum Weight | 1.4 g |
| Display | 7" colour TFT touchscreen |
| Pan Construction | Stainless Steel |
| Built-in Ionizer | No |
| Stabilization Time | 1 s |
| Repeatability, typical | 0.01 g |
| Minimum Weight (USP, 0.1%, typical) | 14 g |
| Linearity ± | 0.02 g |
Brochure
$1,981.08
Original: $5,660.24
-65%Ohaus Precision Balance EXP6202 | 31059197—
$5,660.24
$1,981.08Product Information
