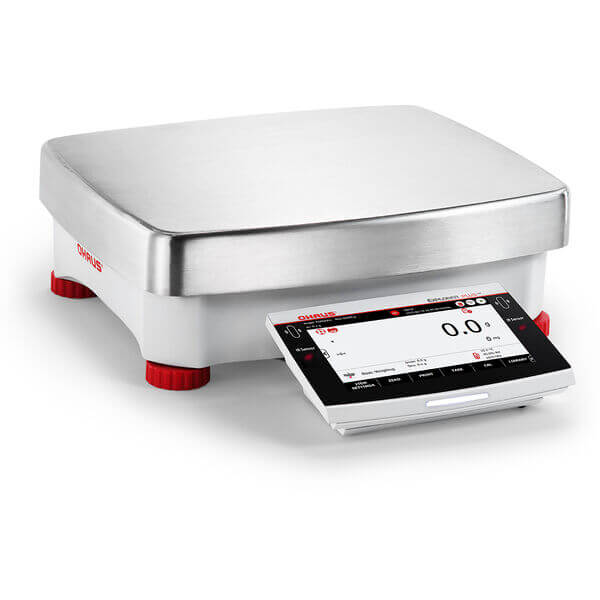

Ohaus High Capcity Balance EXP35001N | 31059204
Ohaus High Capcity Balance EXP35001N | 31059204
Applications
Basic Weighing, Parts Counting, Check Counting, Percent Weighing, Check Weighing, Dynamic Weighing, Totalization, Formulation, Differential, Density Determination, Peak Hold, SQC, Fill Weight Variation, Flow Rate Control
Display
7-inch TFT 16.7M Color Touch Screen with Glass Overlay
Operation
AC Input: 100-240 VAC 0.5A 50-60 Hz
Communication
USB Host (Type A) x 2, USB Device (Type C) x 1, Ethernet (RJ45) x 1, RS232 x 1; Optional Wi-Fi, Bluetooth Dongle
Construction
Modular design, IP54 rated base, Metal base and housing, SST 304 weighing pan, Integral weigh below hook, 3 ambient sensors, 2 touchless sensors, Terminal status light
Design Features
Time Synchronization NTP, Support for HID (Human Interface Device) connection to a computer without the need for drivers, 4 level user management and an internal system log capacity of 100,000 entries, 3000 application sample libraries
Specifications
| Maximum Capacity | 35,000 g |
| Readability | 0.1 g |
| Pan Size | 12.2 in x 14.8 in (311 mm x 377 mm) |
| Internal Calibration | AutoCal™ - Automatic |
| Draftshield | — |
| Dimensions | 17.2 in x 4.9 in x 14.9 in (438 mm x 125 mm x 378 mm) (LxHxW) |
| Battery Life | 5 Hours with Rechargeable Battery |
| Legal for Trade | NTEP Certified |
| Auxiliary Display Model | Available as an Accessory |
| Auto Door | Not Applicable |
| Tare Range | To capacity by subtraction |
| Working Environment | 50°F – 86°F, 80%RH, non-condensing (10°C – 30°C, 80%RH, non-condensing) |
| Net Weight | 30.4 lb (13.8 kg) |
| In-Use Cover | Included |
| Communication | USB device; USB host x 2; RS232; Ethernet TCP/IP; WiFi/Bluetooth (available as an accessory) |
| Power | AC Power (Included) |
| Units of Measurement | Ounce Troy; Pennyweight; Gram; Grain; Kilogram; Pound; Carat; Ounce |
| Minimum Weight | 16 g |
| Display | 7" colour TFT touchscreen |
| Pan Construction | Stainless Steel |
| Built-in Ionizer | No |
| Stabilization Time | 1 s |
| Repeatability, typical | 0.1 g |
| Minimum Weight (USP, 0.1%, typical) | 160 g |
| Linearity ± | 0.2 g |
Brochure
$2,653.31
Original: $7,580.90
-65%Ohaus High Capcity Balance EXP35001N | 31059204—
$7,580.90
$2,653.31Product Information
