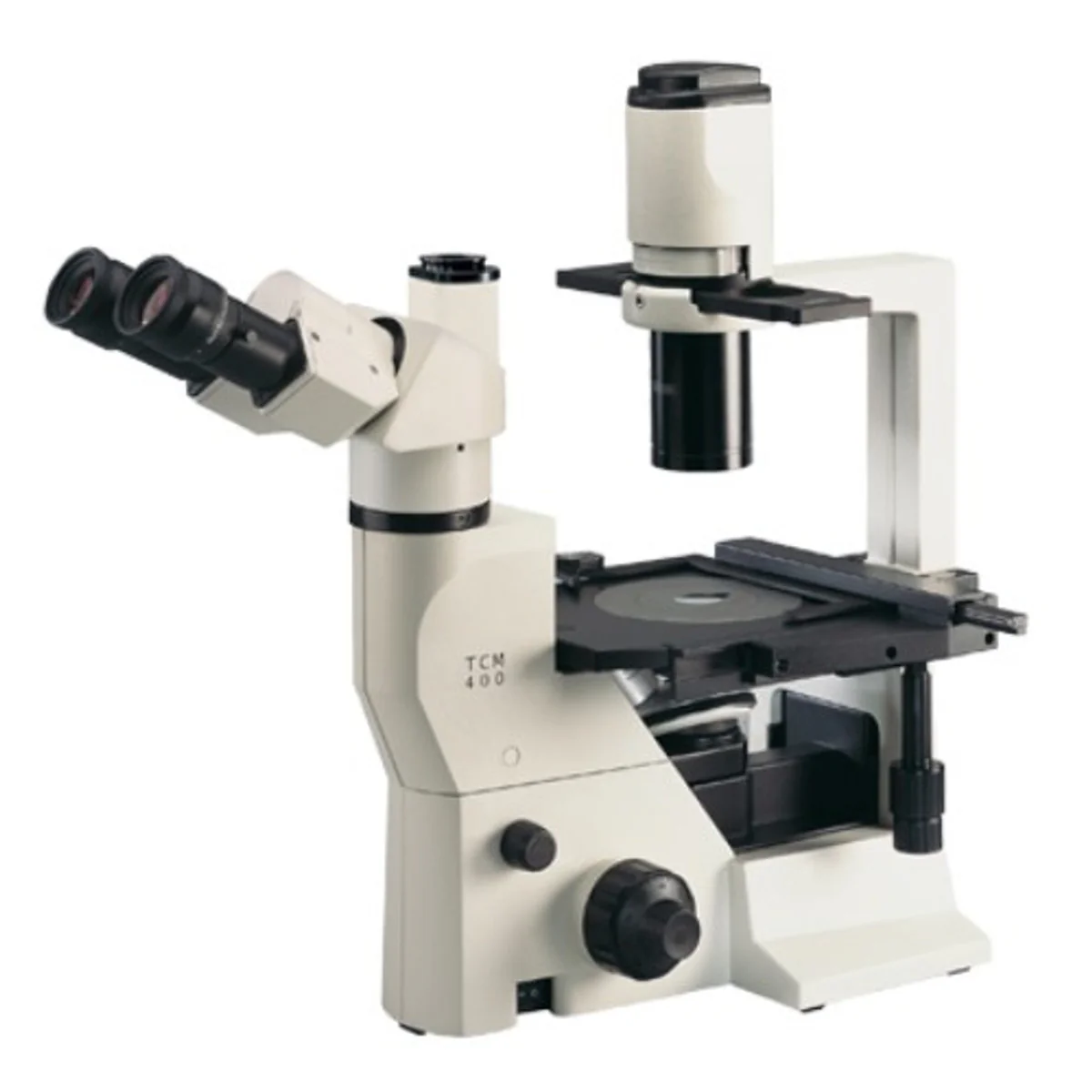

Labomed 7125500 TCM400 Trinocular Inverted Phase Microscope
The TCM 400 Tissue Culture Inverted Microscope series is for high end applications. It incorporates an innovative design with superior mechanical and optical components yielding superior clarity with its infinity corrected optics. Cell culture, In Vitro Fertilization (IVF), and fluorescence stains are viewed in high fidelity with the TCM 400. A host of optional accessories make the system modular and versatile. High-performance optics configured in a durable, compact footprint make the TCM 400 inverted microscope ideal for clinical needs.
Mechanical Stage Not Included.
Product Specifications
| Stand | Ergonomically designed sturdy stand (aluminum die-cast) |
| Viewing Body | Trinocular 30° inclined, IPD 52-75mm |
| Eyepiece | Widefield 10x/22mm eyepieces with rubber eyeguards, antifungal coatings |
| Nosepiece | Quadruple reverse angle turret (Ball bearing type) with rubber grip |
| Objectives | LW series Long working distance DIN Phase Plan Achromatic objectives 4x, 10x and 20x, antifungal coatings |
| Stage | Fixed plain stage 160mm x 240mm |
| Condenser | Long working distance Condenser NA 0.30, suitable for Phase contrast/BF with Phase contrast slider and telescope, Green and Blue filters |
| Focusing | Coaxial coarse and fine focusing mechanism. Fine focus graduation 2.0μm |
| Illumination | Transmitted Illumination system 6v 30w Halogen with intensity control. Up to 500 hours of Halogen lamp life. |
| Electronics | Universal power supply (110V-240V) with built-in voltage stabilizer |
| Warranty | 5-year manufacturer warranty. |
| Certification | UL, CE, ISO 9001:2000 and ISO 13485:2003 |
