Globe Scientific GBT-Series Balances - Internal Calibration | GBT-3003C

The GBT-Series of Analytical and Precision Balances offer a wide range of options, making them an essential piece of equipment in any laboratory.

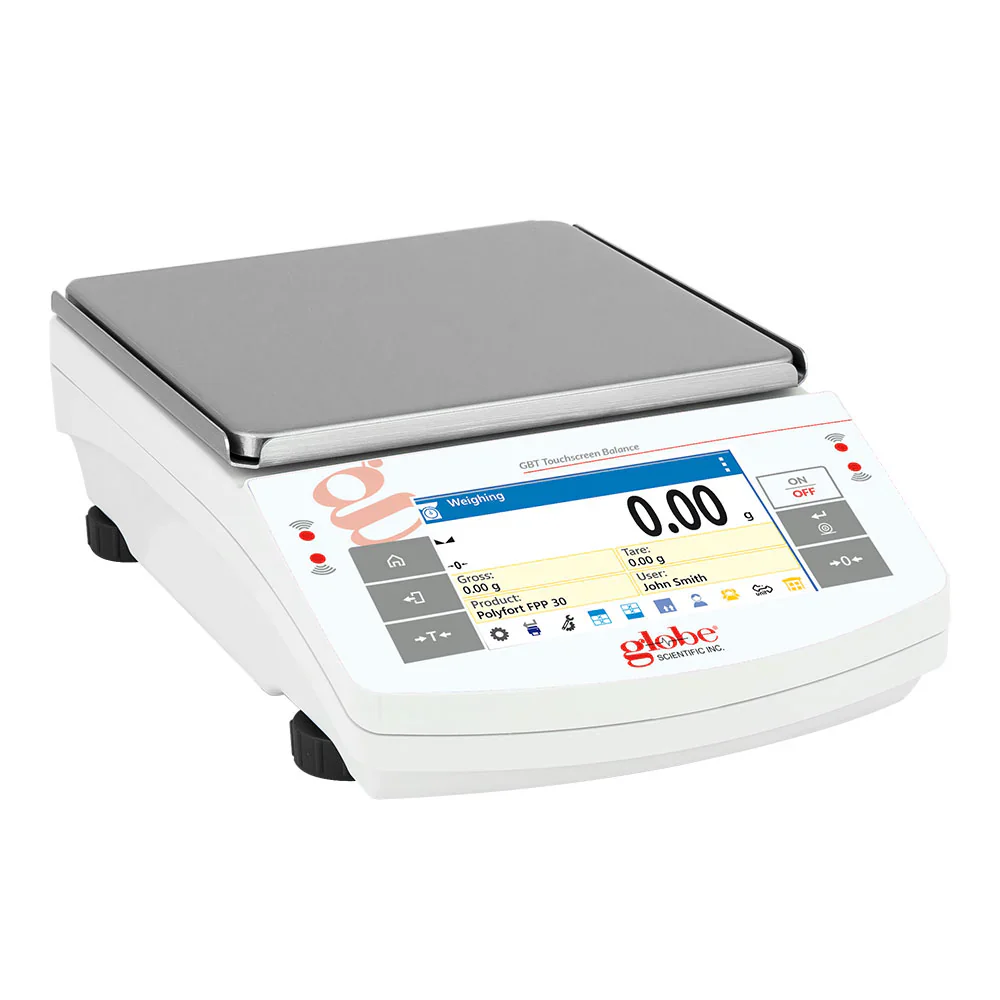

These balances have an advanced color touch display for ease of use, and include touch-free operation capability with two infrared sensors. Intelligent design features like a customizable home screen, and extensive onboard data storage increase the convenience and functionality of these units.

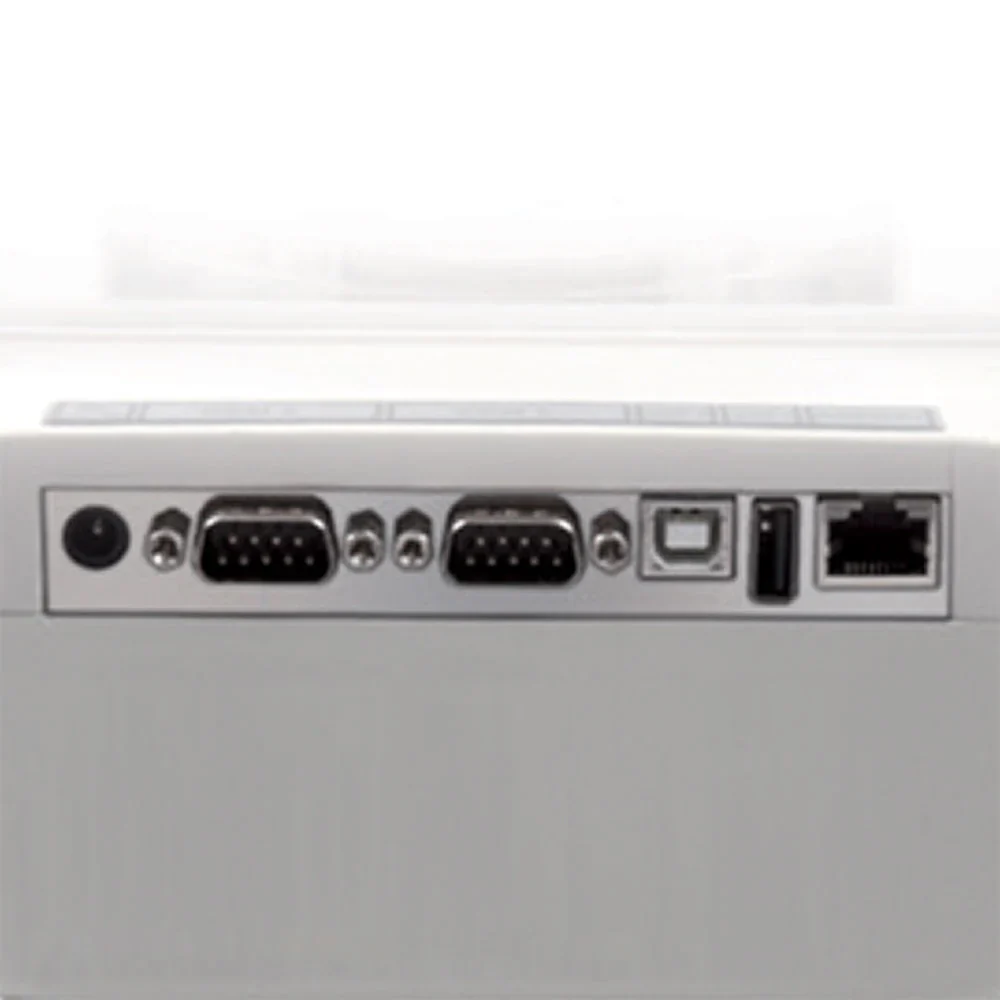

With RS232, USB-A, USB-B, and Ethernet connectivity, GBT-Series balances are well suited to data export, and process integration.

The GBT-Series is available with internal or external calibration types. The internal automatic calibration and adjustment offers three internal calibration options: Temperature-activated, time- activated or manually activated calibration. The external calibration type prompts the user for the pre-defined mass to calibrate the mechanism, ensuring precise and repeatable measurements.

Features:

• Application Modes:Optimize the performance of your balance with one of 11 application modes: Basic Weighing, Piece Counting, Check Weighing, Dosing, Deviations, Density Determination (Solids & Liquids), Animal Weigh, Statistics, Totalizing (Formulation), and Peak Hold.
• Premium Build Quality:The housing is designed to endure the most challenging environments from teaching labs to industrial use.
• Database Storage and Onboard Processing:Standard on the GBT-Series balances. Store Users, Products, Weighings, Packaging, Formulations and Customers in memory. Detailed reporting includes Balance ID, User, Date, Time, Software Version, Measurement Mode, Results, and Signature Line, allowing for data stewardship and complete GLP documentation.
• Touch-Screen Display:Intuitive interface navigation. Easily click, scroll, and tap through menus and submenus. Infrared sensors also allow for touchless operation, when cleanliness and compliance is at a premium.

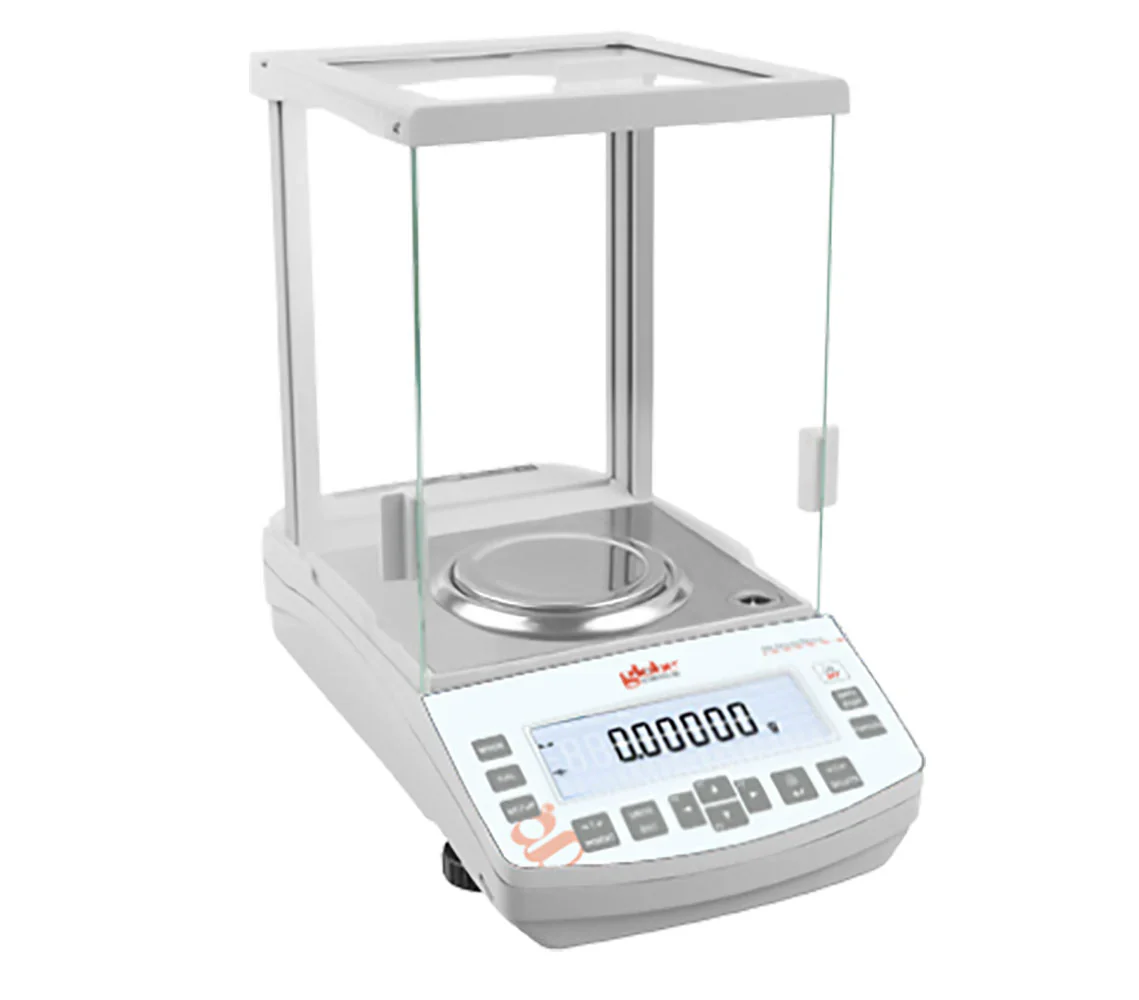

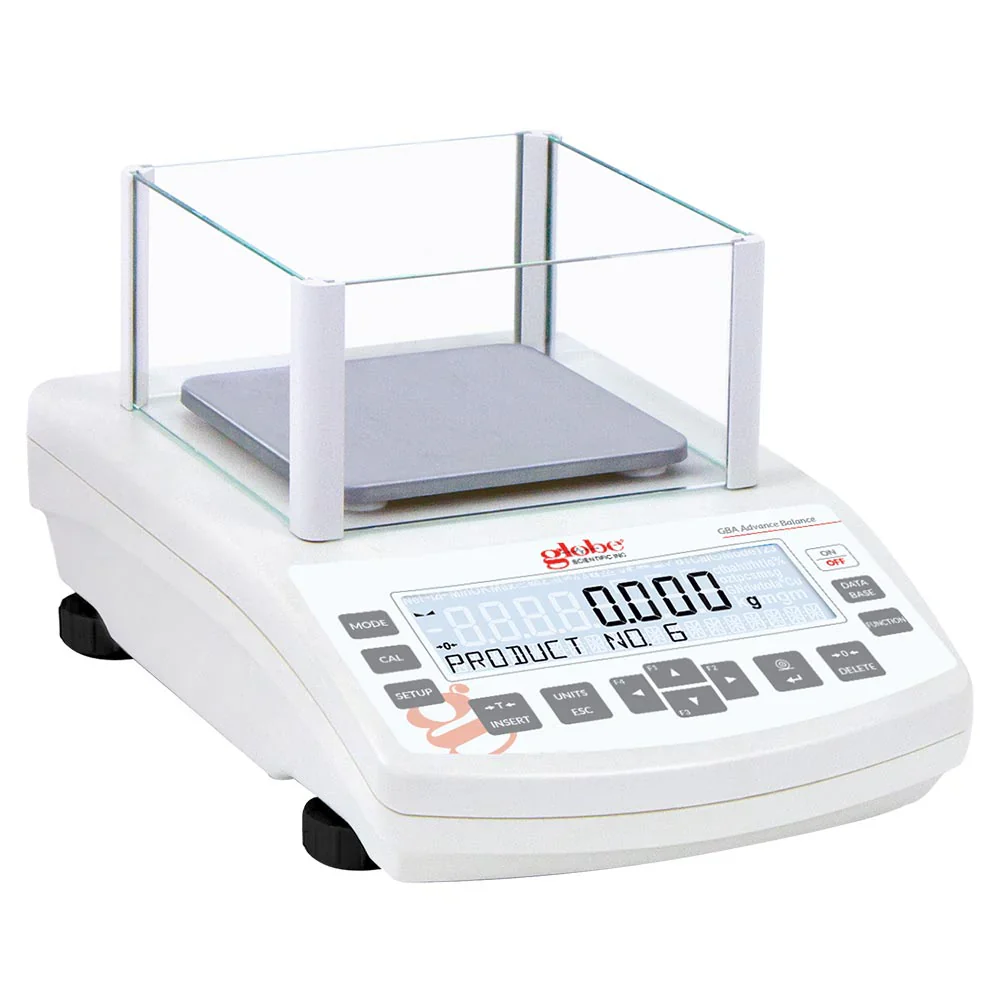

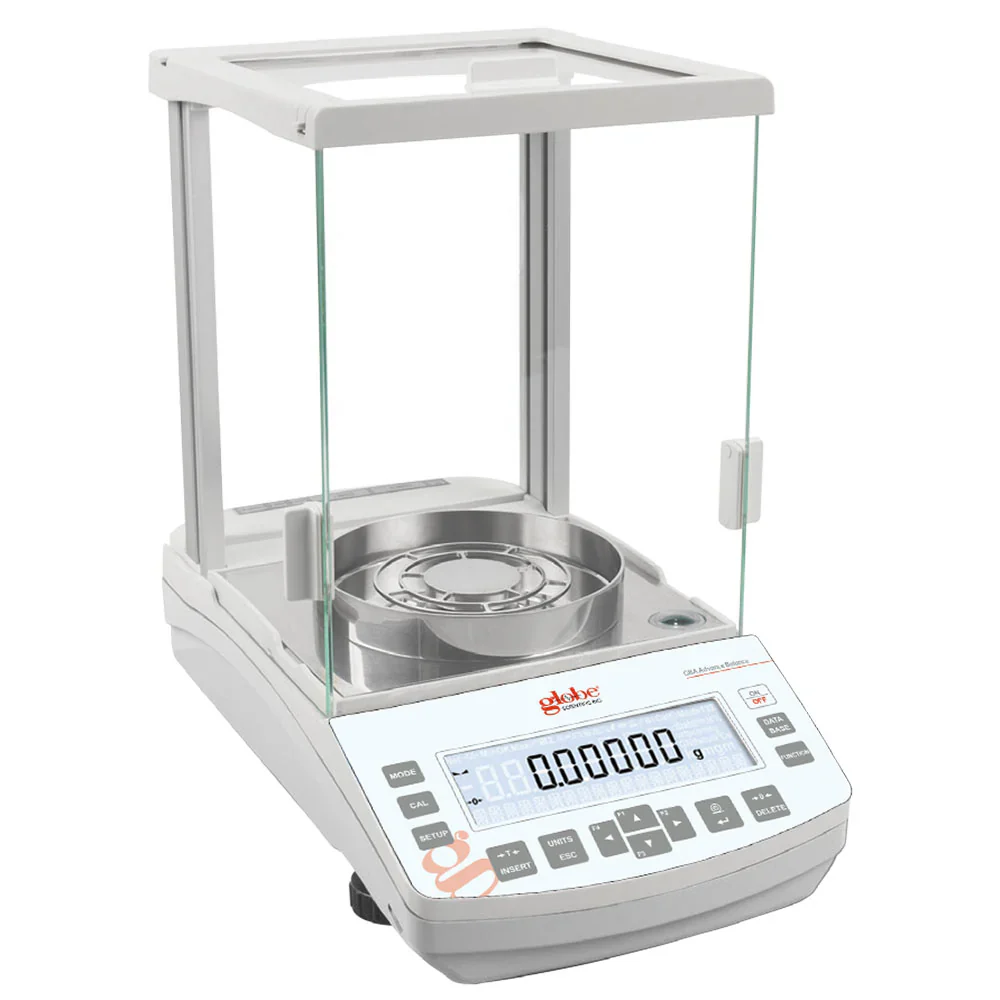

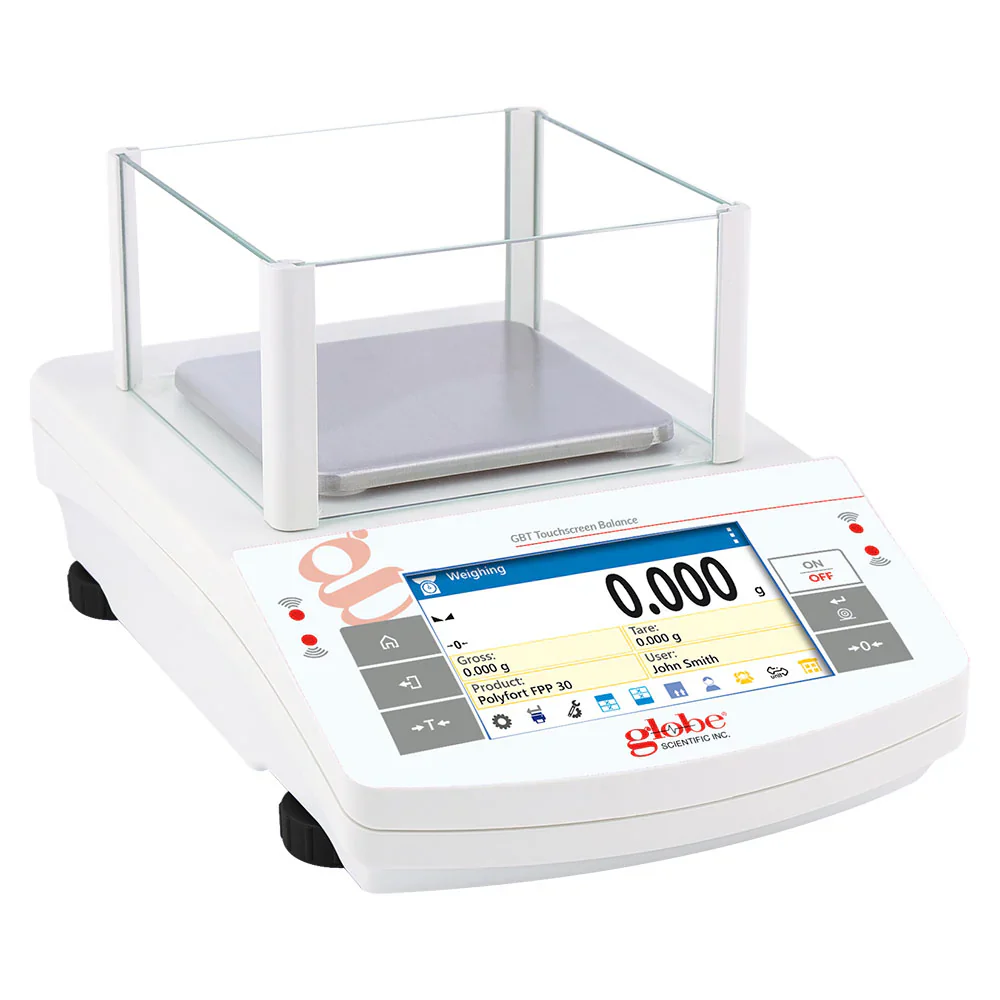

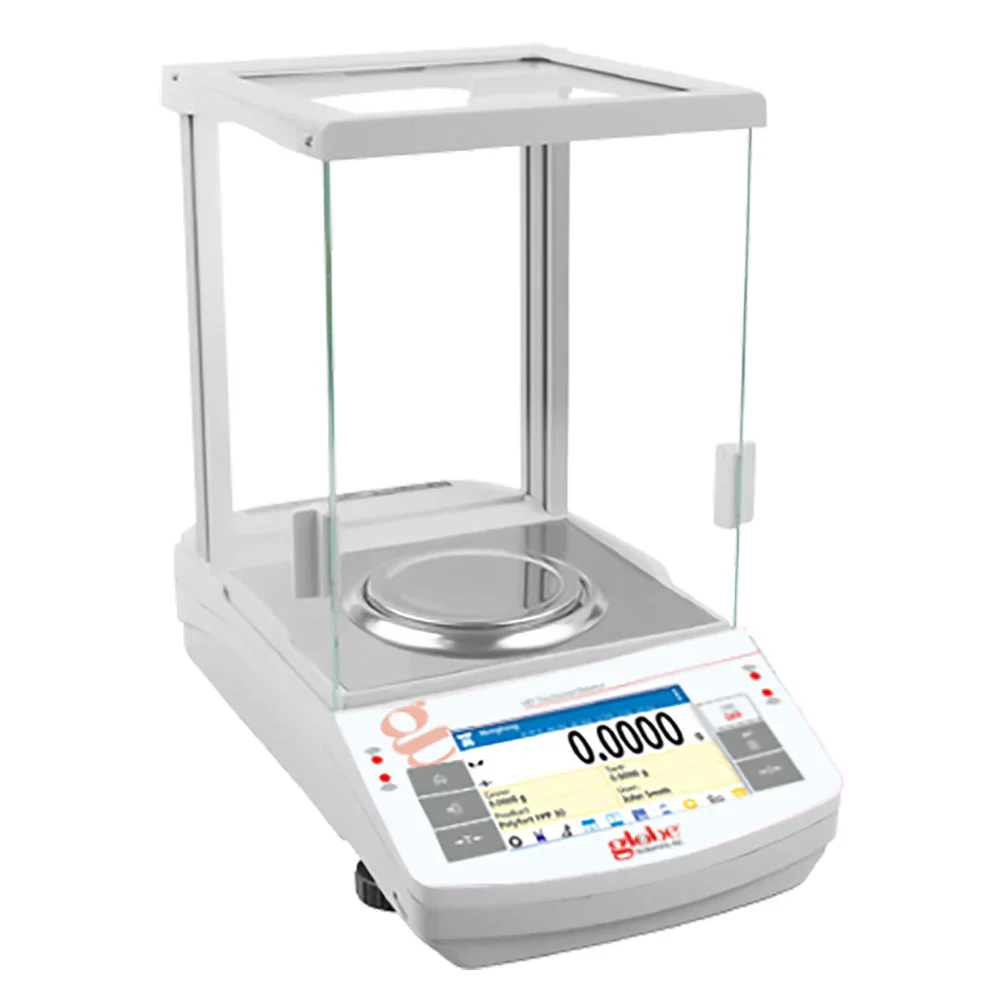

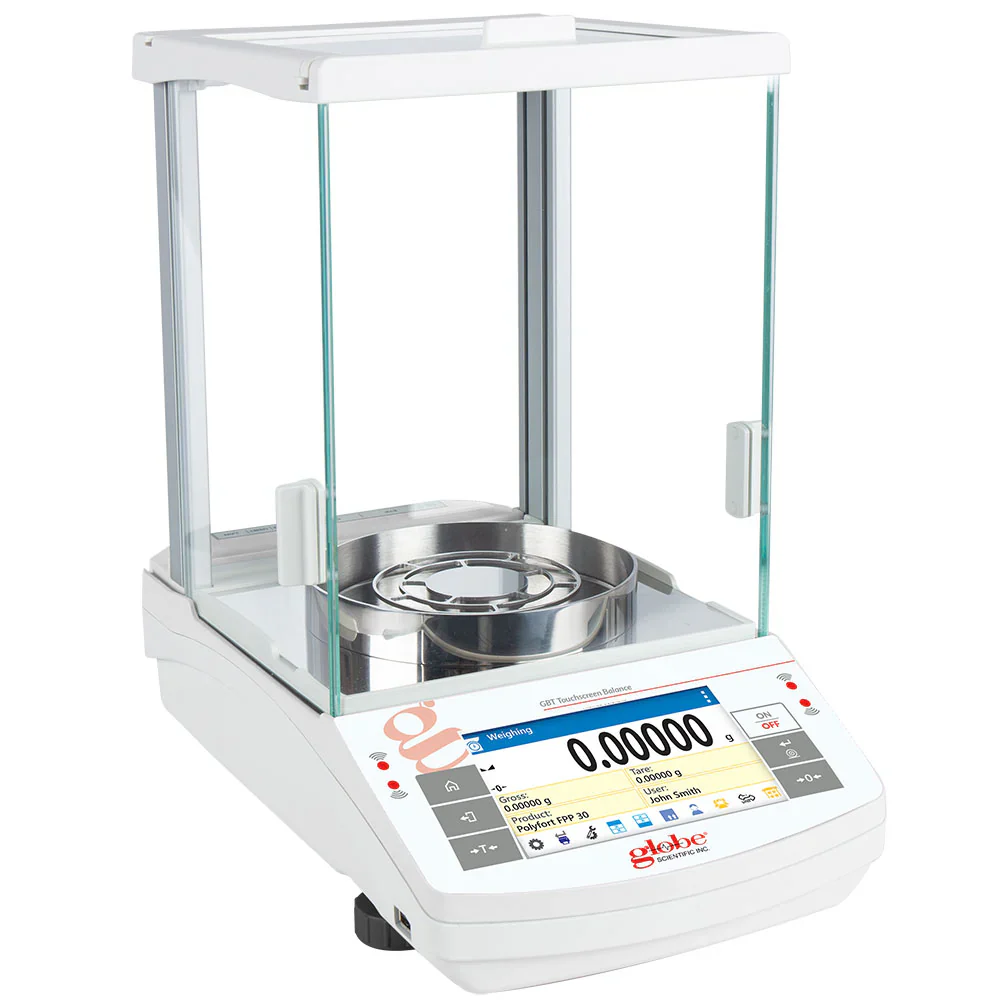

• User-Friendly Draft Shield:Standard on semi-micro and analytical models. The internal dimensions (16.0 x 16.8 x 23.0 cm (6.25 x 6.6 x 9”)). and three sliding doors allow for easy access to the chamber. The draft shield doors, stainless steel weigh pan, and draft chamber floor are easy to remove for cleaning. A short, removable draft shield comes standard on the 0.001g readability GBT-Series precision balances.

Technical Information

Analytical Balances
Item # Item # (with Cl. Cert.)*	GBA-225C GBA-225-CT	GBA-164C GBA-164C-CT	GBA-224C GBA-224C-CT	GBA-314C GBA-314C-CT
Maximum Capacity	82 / 220g	160 g	220 g	310 g
Readability	0.01 / 0.1 mg	0.1 mg	0.1 mg	0.1 mg
Linearity	+/- 0.05/0.2 mg	+/- 0.2 mg	+/- 0.2 mg	+/- 0.2 mg
Repeatability	0.08 mg	0.08 mg	0.08 mg	0.12 mg
Calibration Type	Internal	Internal	Internal	Internal
Stabilization Time	3 sec	2 sec	2 sec	2.5 sec
Pan Size	ø 90mm	ø 100mm	ø 100mm	ø 100mm
Device Dimensions	351 x 205.5 x 338 mm
Ports	2×RS232, 2×USB-A (Interchangeable), USB-B, Wi-Fi



Precision Balances
Item # Item # (with Cal. Cert.)*	GBA-603C GBA-603C-CT	GBA-1003C GBA-1003C-CT	GBA-6002C GBA-6002C-CT
Maximum Capacity	600 g	1000 g	6100 g
Readability	0.001 g	0.001 g	0.01 g
Linearity	+/- 0.003 g	+/- 0.003 g	+/- 0.03 g
Repeatability	0.0015 g	0.0015 g	0.008 g
Calibration Type	Internal	Internal	Internal
Stabilization Time	3 sec	4 sec	1.5 sec
Pan Size	128 x 128 mm	128 x 128mm	195 x 195 mm
Device Dimensions	333 x 206 x 100 mm	333 x 206 x 100 mm	333 x 206 x 107 mm
Ports	2×RS232, USB-A, USB-B, Wi-Fi
