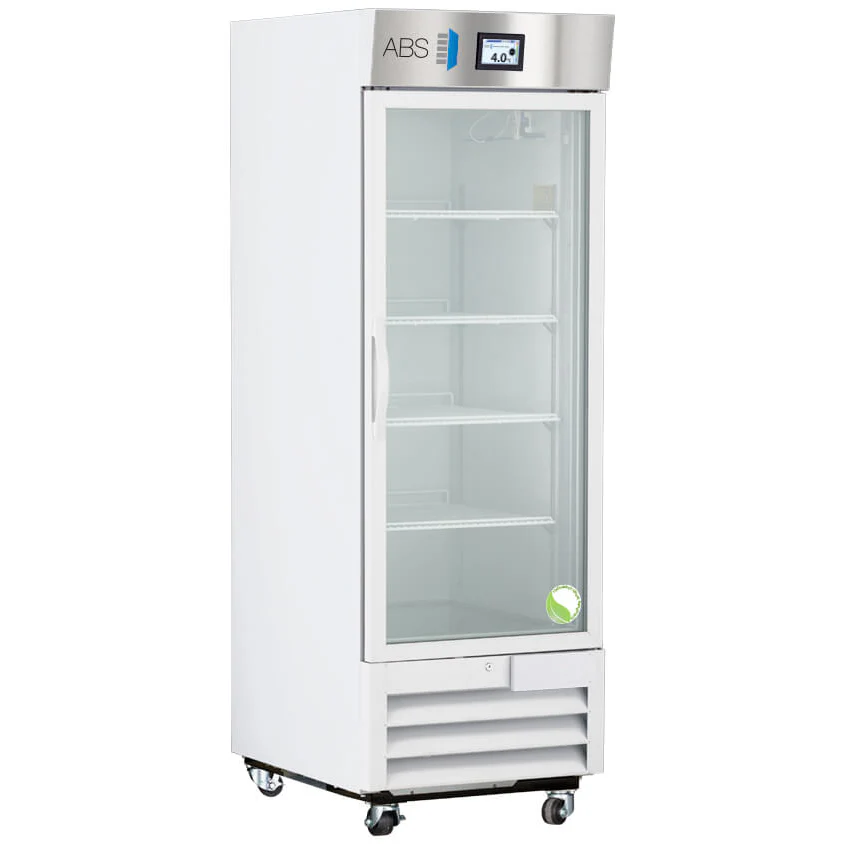

American BioTech Supply 23 Cu.Ft. TempLog Premier Laboratory Refrigerator, 1°C - 10°C, Glass Door, ABT-HC-LP-23-TS
The TempLog Premier Glass Door Laboratory Refrigerators are purpose built for scientific and medical applications. Units feature a digital microprocessor temperature controller allowing for the precise temperature management necessary for critical samples and supplies. A forced air directional refrigeration system provides superior temperature uniformity and recovery after door openings. An automatic cycle-defrost design prevents product damaging temperature spikes.
The Touch Screen temperature display and alarm module offers the latest in advanced temperature control and data logging.
Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.
Details:
- 23 CU. FT. CAPACITY
- ONE SWING GLASS DOOR, SELF-CLOSING, RIGHT HINGED, NOT REVERSIBLE
- FORCED DRAFT AIR CIRCULATION
- FOUR ADJUSTABLE SHELVES (ADJUSTABLE IN ½" INCREMENTS)
- KEYED DOOR LOCK
- MAGNETIC DOOR GASKET FOR POSITIVE SEAL
- HEAVY DUTY DOOR HANDLE
- LED INTERIOR LIGHTS ARE SAFETY SHIELDED AND SWITCH CONTROLLED
- SWIVEL CASTERS (3 ½”)
- PROBE ACCESS PORT (3/8")
- WHITE POWDER-COATED STEEL EXTERIOR AND INTERIOR
- HIGH DENSITY URETHANE FOAM CABINET INSULATION
- HYDROCARBON, NATURAL REFRIGERANT (R290)
- THREE YEAR PARTS AND LABOR WARRANTY, PLUS AN ADDITIONAL TWO YEAR COMPRESSOR PARTS WARRANTY
- ETL LISTED
Specifications:
- EXTERIOR DIMENSIONS: 26 ⅞” W X 34 3/4” D X 81 ¾” H WITH CASTERS; 78 ¼” H WITHOUT CASTERS
- CYCLE DEFROST
- 115V, 60 HZ, 3 AMPS, 1/5 HP
- SHIPPING WEIGHT: 336 LBS.
Temp Controller:
- MICROPROCESSOR TEMPERATURE CONTROLLER
- ADJUSTABLE OPERATING TEMPERATURE RANGE: 1°C - 10°C
- TOUCH SCREEN DIGITAL TEMPERATURE DISPLAY AND ALARM MODULE
- PASSWORD-PROTECTED CONTROL PANEL
- SAMPLE SIMULATED DIGITAL TEMPERATURE DISPLAY; .1° RESOLUTION, ADJUSTABLE TEMPERATURE DISPLAY IN CELSIUS OR FAHRENHEIT
- ACTIVE TEMPERATURE SCALE BAR DISPLAY
- RESETTABLE 1-POINT MIN/MAX HISTORY
- DIGITAL 24-HOUR TEMPERATURE CHART
- TEMPERATURE DATA LOGGING
- USB PORT FOR DATA TRANSFER AND SOFTWARE UPDATES
- REAL-TIME OPERATIONAL DISPLAY CLOCK
- 4-20MA OUTPUT
- ELECTRONIC TROUBLESHOOTING GUIDE
- ELECTRONIC QR CODE TO ACCESS OWNER’S MANUAL & TECHNICAL SUPPORT CONTACT INFORMATION
- ADJUSTABLE ALARM VOLUME
- AUDIBLE AND VISUAL HIGH/LOW TEMPERATURE ALARMS
- 2 PROBES; 1 IN AIR AND 1 IN SAMPLE BOTTLE
- SENSOR ERROR ALARM
- POWER FAILURE ALARM
- DOOR AJAR ALARM
- LOW BATTERY ALARM
- OPERATION INDICATOR
- ALARM VALIDATION (AUDIBLE, VISUAL, AND REMOTE ALARM) AND ALARM MUTE WITH RING BACK REMOTE ALARM CONTACTS
Product Documents
- Tech Specs
- Cut Sheet (interior)
- Cut Sheet (exterior)
